Pneumatic Transports
In order to design a pneumatic transport system, the following information is required:
 |
Quantity of material to be transported (in tonnes per hour) |
|
Specific weight of the material to be transported (in kg per m³) |
|
Size of the particles
|
|
Indicate if the material has a tendency to contain lumps. |
|
Total distance to be covered by the transport in metres (include vertical parts).
|
|
Height difference between entry point and exit point in metres. |
|
Number of curves in the system. |
|
Indicate the number of entry points and exit points of the system. |
|
Indicate the form of dust separation at the arrival of the transport (filter or cyclone). |
|
|
|
|

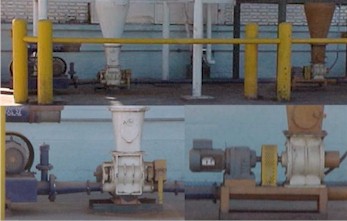

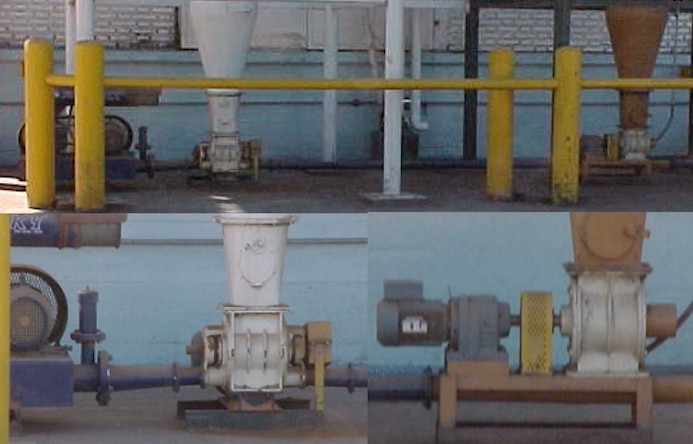

Dust entry |

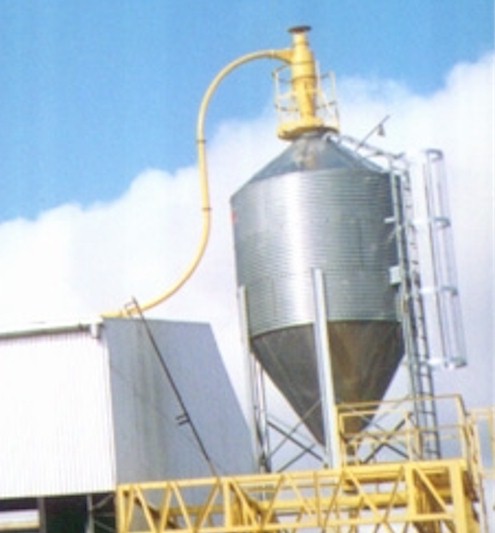

Cyclone at arrival |
Click on the picture to enlarge
|
MOST IMPORTANT EXECUTED PNEUMATIC TRANSPORT WORKS
|
| CLIENT |
SITE |
SYSTEM |
Capac.
ton/h |
Length
m |
Notes |
| Acopio Larroude |
Larroude (Córdoba) |
Waste transport |
1,50 |
45,00 |
|
| A.F.A. |
Bigand (Sta Fe) |
Waste transport |
4,30 |
51,00 |
|
| Agro Uranga |
Uranga (Sta. Fe) |
Reinjection of fine parts
|
0,30 |
15,00 |
|
| Allocco |
(Ucrania) |
|
12,50 |
230,00 |
2 systems
|
| Bunge Argentina S.A |
Tancacha (Cordoba) |
System A |
7,00 |
203,00 |
|
|
System B |
7,00 |
130,00 |
|
|
System C |
3,50 |
120,00 |
|
|
Wagon system and tunnel to silo
|
0,60 |
30,00 |
|
| Piquete Cavado (Salta) |
Precleaning |
3,00 |
42,00 |
|
| San Jerónimo (Sta. Fe) |
Dryer and reception
|
3,50 |
266,00 |
|
| Cargill SACI |
Puerto S. Martín (Sta. Fe) |
Site C to site
AB |
6,00 |
110,00 |
|
|
Dryer Site A |
0,25 |
75,00 |
|
|
Dryer Site C |
2,00 |
70,00 |
|
|
Screen Site C |
1,50 |
40,00 |
|
|
Precleaning 1, 2 & 3
|
16,00 |
395,00 |
|
| Carmen (Sta. Fe.) |
Screen and waste
|
6,00 |
32,00 |
|
| Bragado (Sta. Fe) |
Screen and waste
|
4,00 |
28,00 |
|
| Lincoln (Bs.As.) |
Transport of waste |
4,00 |
45,00 |
|
| Pehuajó (Bs. As.) |
Transport of waste
|
4,00 |
45,00 |
|
| Estación América (Bs. As.) |
Transport of Waste |
4,00 |
50,00 |
|
| Diamante (E. Ríos) |
Aspiration elevators |
0,30 |
70,00 |
Cant. 4 sistemas |
|
Precleaning
|
3,00 |
60,00 |
|
|
Conveyors for loading |
1,00 |
124,00 |
Cant. 2 sistemas |
| Pto. Ing. White (Bs. As.) |
Machinery cleaning system
|
2,00 |
60,00 |
|
| Pto. Ing. White (Bs. As.) |
Transport of hulls |
12,00 |
124,00 |
|
| Pto. Quequén (Bs. As.) |
Pellet transport
|
10,00 |
180,00 |
|
|
Transport of hulls |
8,00 |
120,00 |
|
| Molinos Río de la Plata |
Rosario |
Pneumatic transport of flour |
6,00 |
30,00 |
|
| Pecom-Agra |
Pto. San Martín (Sta. Fe) |
Cyclones System Tower I
|
0,40 |
25,00 |
|
| Pringles San Luis S.A |
(La Toma-San Luis) |
Transport of chemicals
|
5,00 |
80,00 |
|
| Superm. Hipertigre |
Rosario (Sta. Fe) |
Pneumatic mail distribution
|
|
40,00 |
|
| UNILEVER S.A. |
La Rioja (La Rioja) |
Transport of mustard seeds |
1,00 |
87,00 |
|
|
